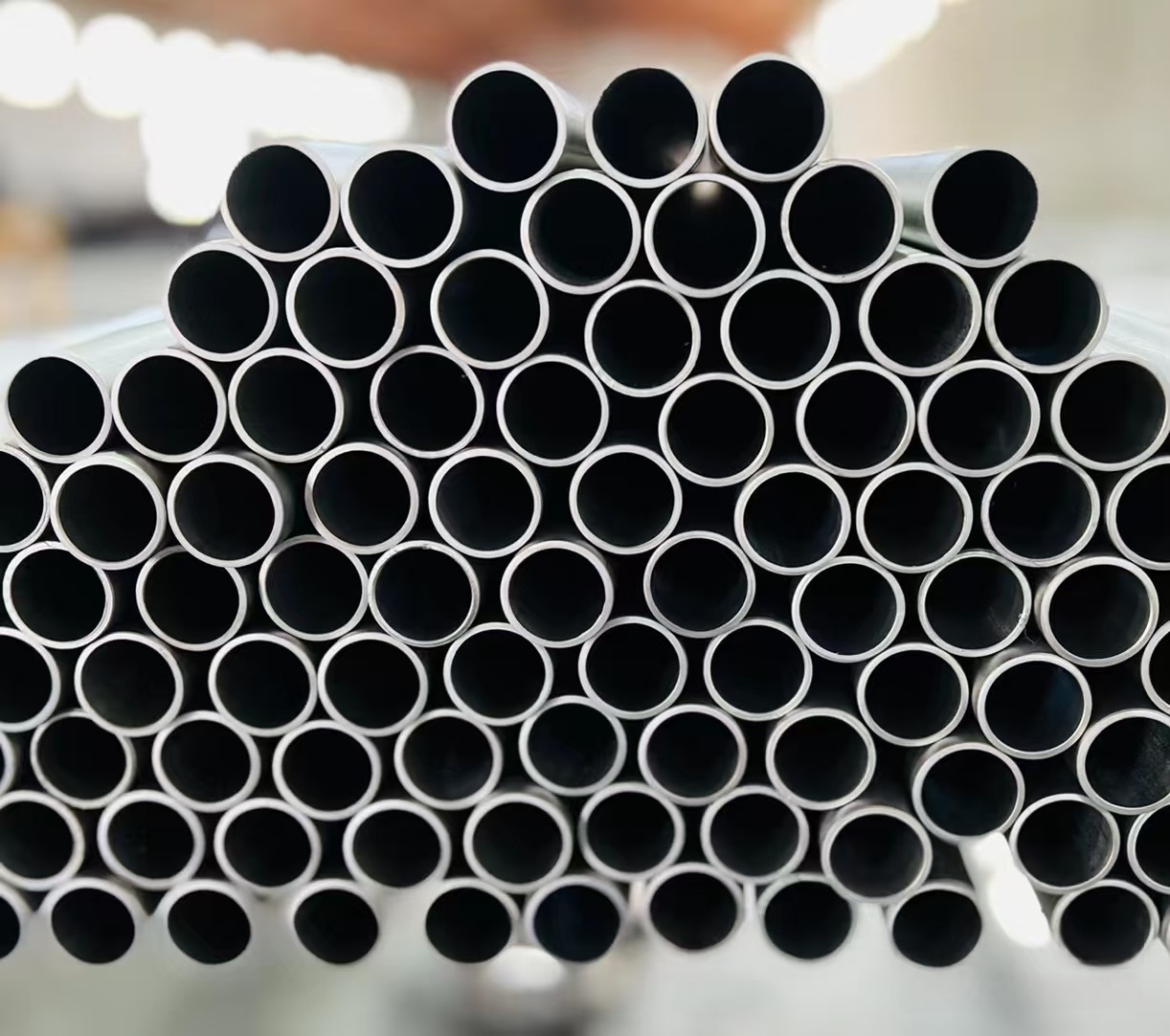

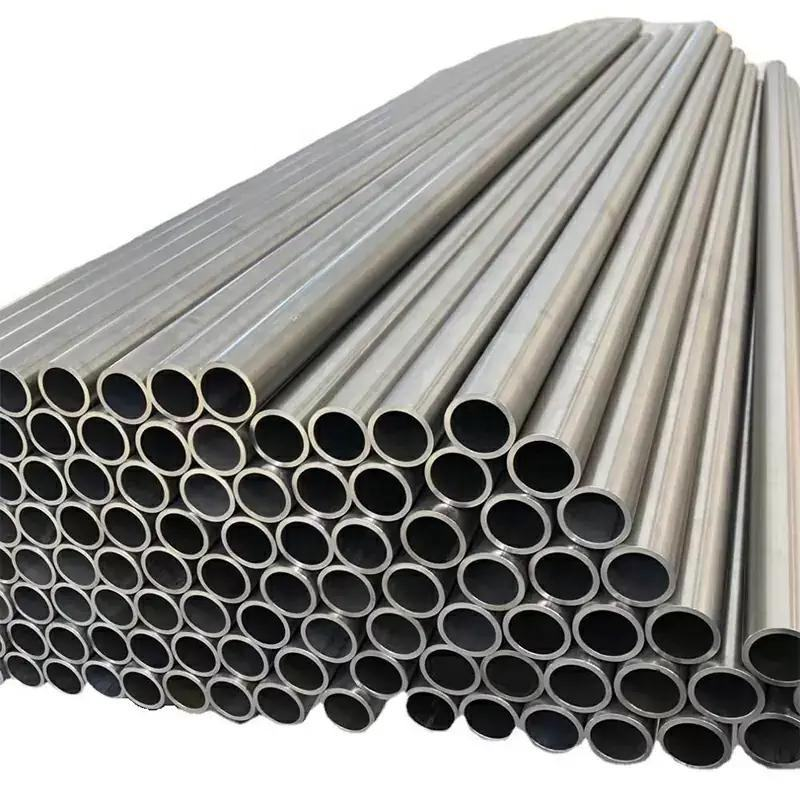

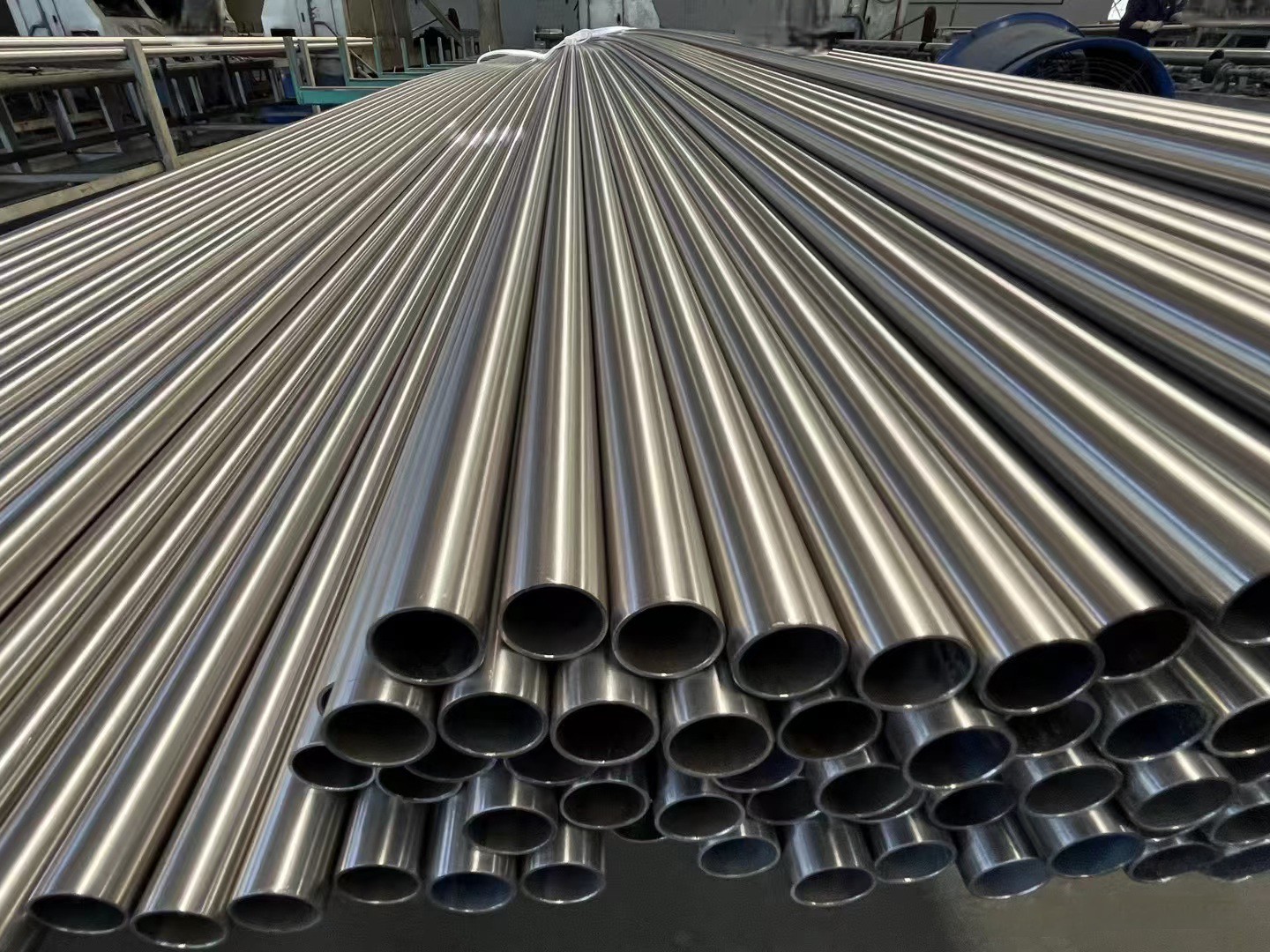

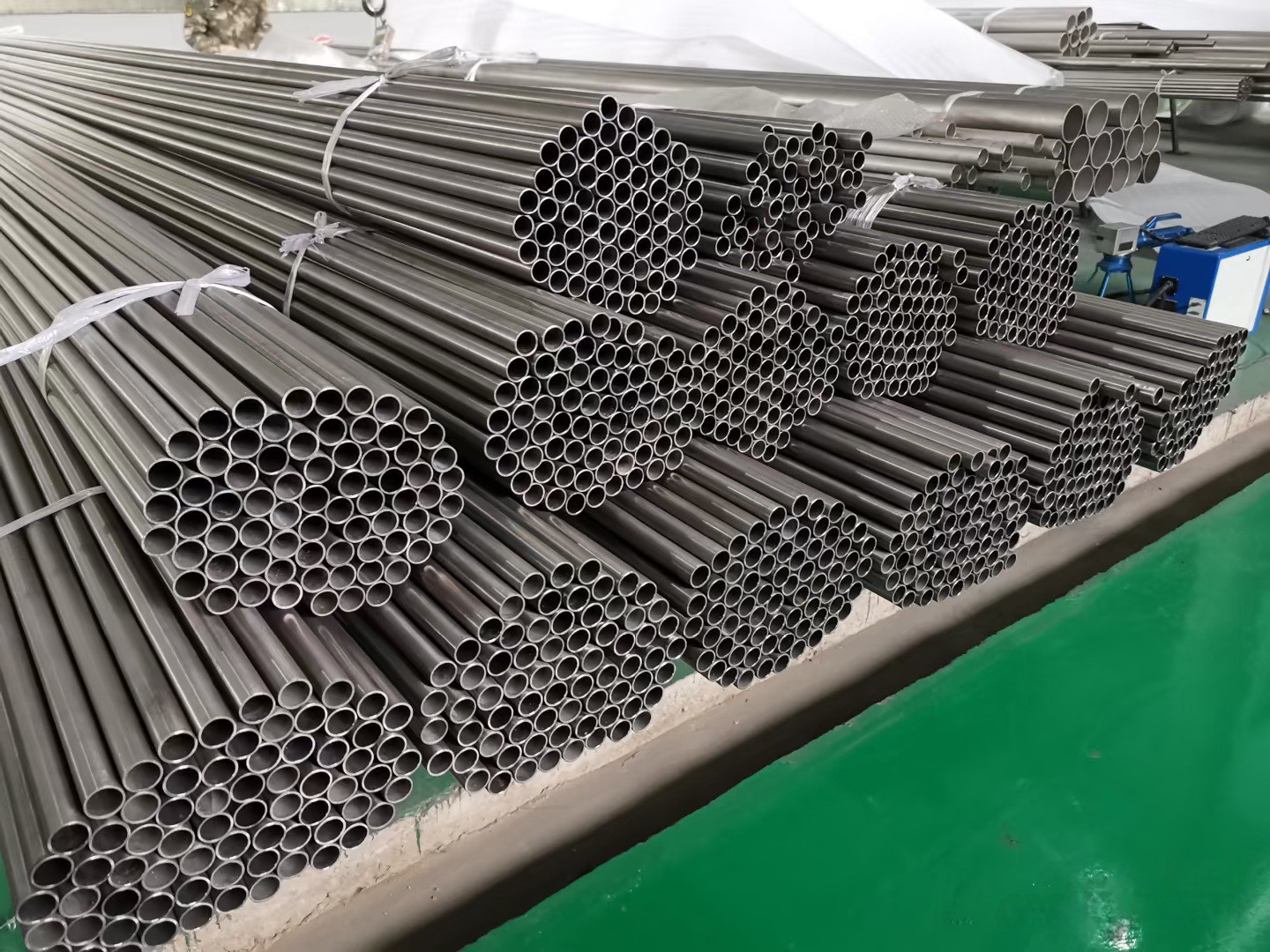

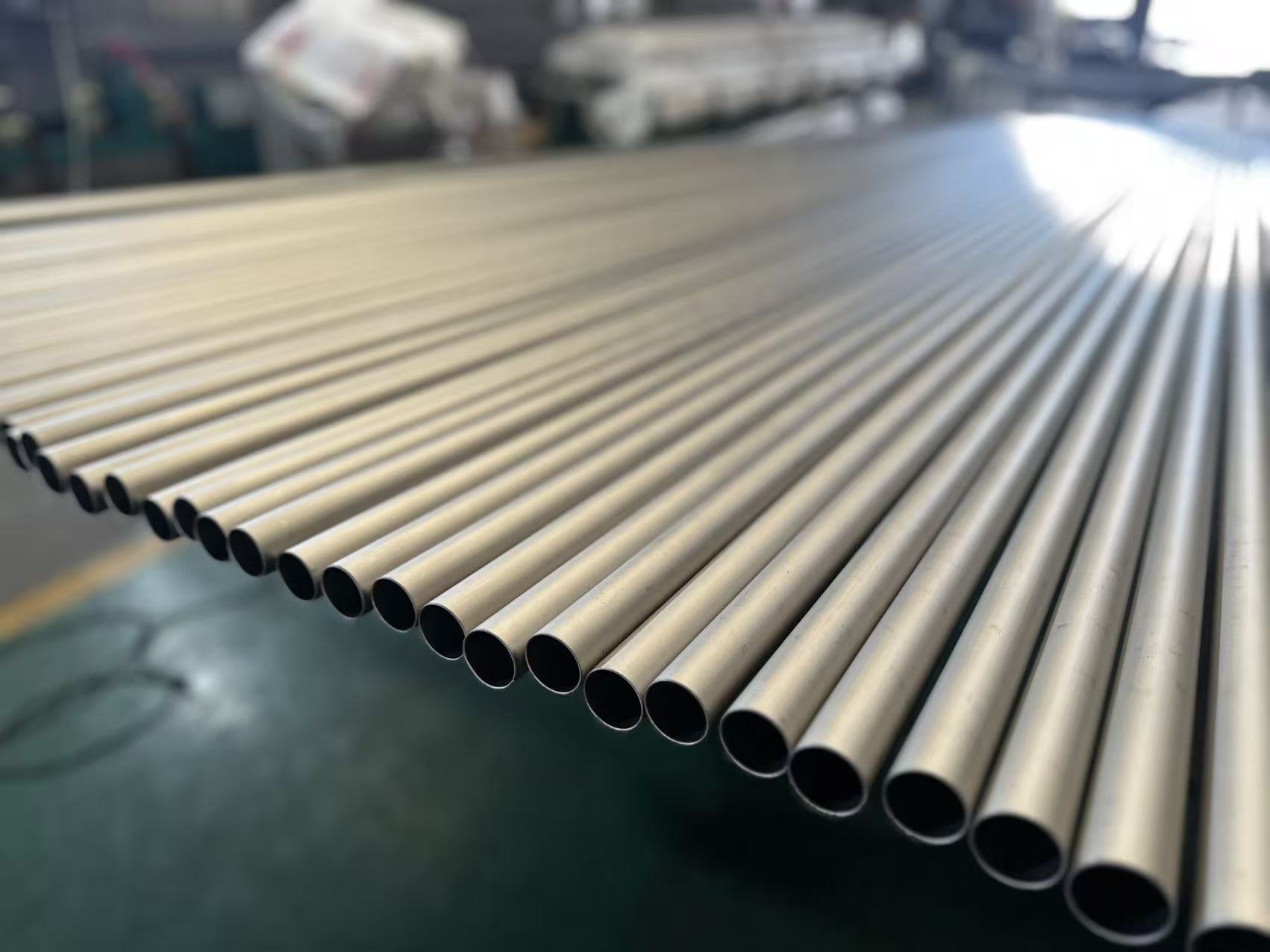

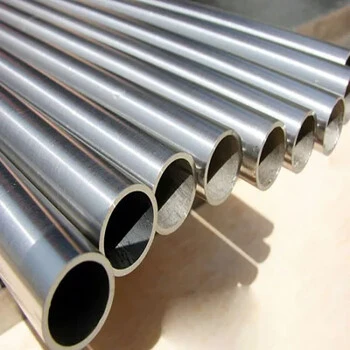

Titanium Pipe/Tube
Product Parameters
Titanium Pipes and Tubes Parameter
Material Systems & Engineering Characteristics
Industrial-Grade Titanium Alloys
Grade 1 / Grade 2 : Maximum formability with exceptional corrosion resistance, ideal for complex fabrication in chemical processing systems
Grade 3 / Grade 4: Enhanced mechanical strength while maintaining corrosion protection, suitable for structural components in aggressive media
High-Performance Titanium Alloys
Grade 5 ( Ti-6Al-4V): Aerospace-grade alloy offering the optimal strength-to-weight ratio for pressure vessels and load-bearing systems
Grade 7 / Grade 12 : Specially formulated for resistance to reducing acids and localized corrosion in chemical reactors
Grade 9 (Ti-3Al-2.5V): Superior fatigue resistance and weldability for dynamic piping systems
Grade 23 ( Ti-6Al-4V ELI): Medical-implant grade with controlled interstitial elements for biocompatible applications
Dimensional Ranges & Manufacturing Capabilities
Seamless Tubing Specifications
Outer Diameter: 2mm – 550mm (0.08" – 21.65")
Wall Thickness: 0.3mm – 35mm (0.012" – 1.38")
Standard Lengths: Up to 20,000mm (20 meters)
Production Methods: Rotary piercing, cold pilgering, and precision drawing processes
Key Advantage: Homogeneous microstructure with superior pressure integrity

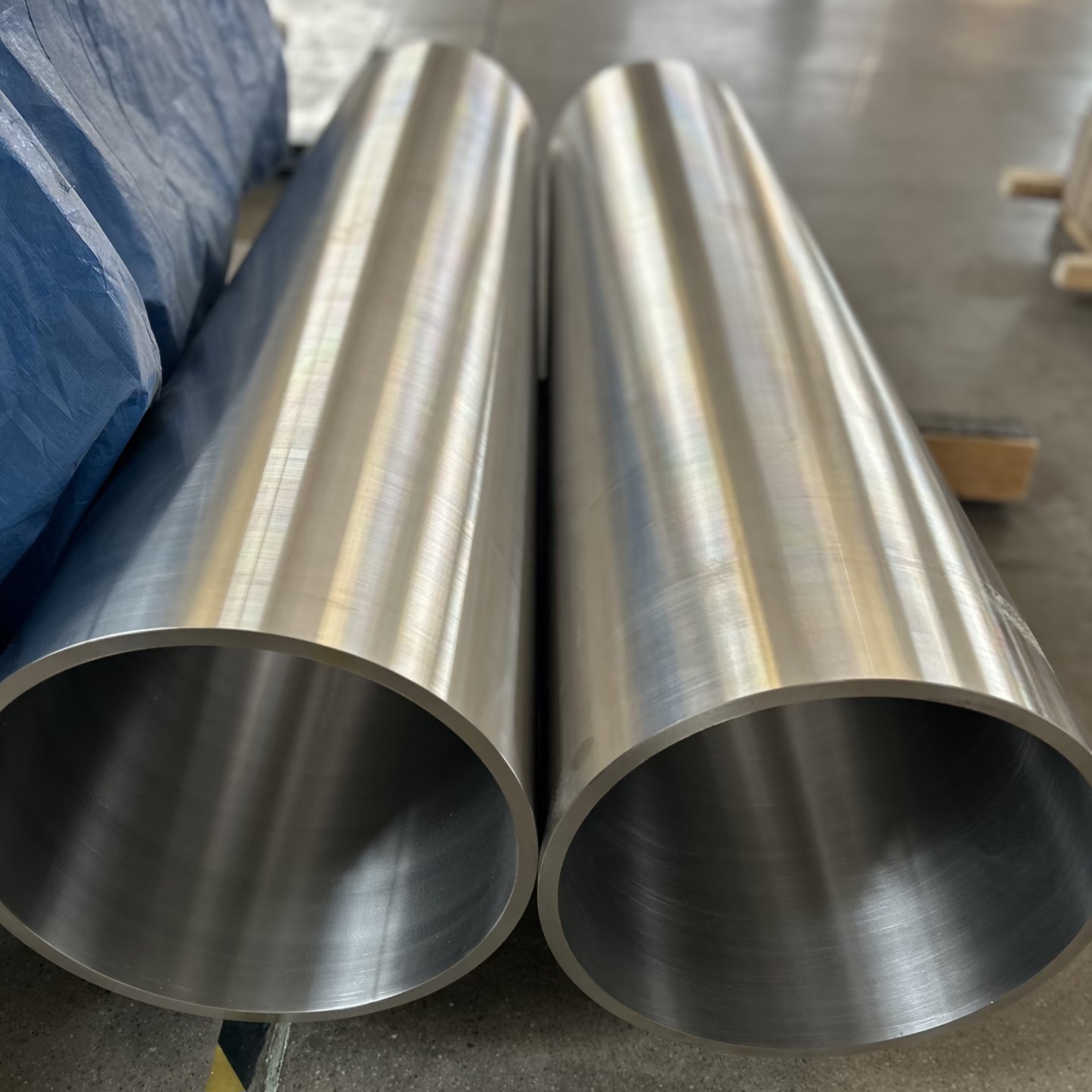

Welded Tubing Specifications
Outer Diameter: 80mm – 1100mm (3.15" – 43.31")
Wall Thickness: 0.4mm – 60mm (0.016" – 2.36")
Standard Lengths: Up to 16,000mm (16 meters)
Welding Technology: Automated orbital TIG/GTAW with full penetration welds
Key Advantage: Cost-efficient production of large-diameter components
Surface Finishing Options
Industrial Finishes: Acid pickling, mill annealing, mechanical polishing
Specialized Finishes: Electropolishing (Ra ≤ 0.2μm), passivation treatments
Custom Finishes: Anodized coatings, external/internal sandblasting
End Preparations: Threaded ends, grooved couplings, flanged connections
Engineering & Quality Assurance
Manufacturing Excellence
Seamless Production: Utilizing advanced pilger mills and cold drawing technology to achieve wall tolerance of ±5%
Welded Production: Implementing laser-guided welding systems with real-time monitoring, achieving weld efficiency exceeding 98%
Heat Treatment: Controlled atmosphere annealing furnaces with temperature uniformity of ±10°C
Final Processing: Precision straightening and cutting with CNC-controlled accuracy
Comprehensive Quality Verification
Material Authentication
Optical emission spectrometry for full chemical analysis
Positive Material Identification (PMI) using XRF technology
Traceability documentation with melt certificate validation
Geometric Verification
Laser scanning for dimensional accuracy (±0.05mm capability)
Ultrasonic wall thickness mapping (100% coverage)
Concentricity measurement with 0.01mm precision
Performance Validation
Hydrostatic testing to 150% of design pressure
Flattening and flaring tests per ASTM/ASME standards
Corrosion testing including salt spray and autoclave validation
Microstructure analysis with grain size certification
Non-Destructive Evaluation
Automated eddy current testing for seam integrity
Phased array ultrasonic examination of weld zones
Digital radiography with 2% sensitivity detection
Liquid penetrant inspection for surface discontinuities
Application-Specific Selection Guidelines
Seamless Tubing Applications
Aerospace & Defense: Hydraulic systems, fuel lines, structural components
Energy Sector: Heat exchanger tubes, downhole instrumentation, nuclear components
Medical Technology: Implantable device housings, surgical instrument shafts
High-Pressure Systems: Compressed gas storage, supercritical fluid transport
Welded Tubing Applications
Chemical Processing: Reactor jackets, distillation columns, large-diameter transfer lines
Marine Engineering: Seawater intake systems, ballast piping, offshore platform structures
Power Generation: Condenser tubes, flue gas desulfurization systems
Industrial Infrastructure: Exhaust ducting, process ventilation, material handling systems
Product Application
Product Packaging
Factory Display
FAQ
Q：What titanium products do you have?
A：Our products include titanium tubes, titanium plates, Titanium bars, titanium forgings and custom titanium alloy parts.
Q：What is your delivery time?
A：Inventory items usually take 5 to 10 days, while custom-made items may take 15 to 25 days, depending on the quantity.
Q：Are you a manufacturer or a trading company?
A：We have been a professional manufacturer and exporter of titanium metal materials for over 20 years.
Q：Can we get a sample?
A：We can provide samples according to your requirements.
Q：Do you offer after-sales service?
A：We offer after-sales service and a 100% product guarantee.
Q：How to place an order?
A：Answer: Please forward your purchase order via email and include the following information:
(1) Transportation information: Company name, contact number, destination port.
(2) Product details: Quantity, specifications (material grade, thickness, width, surface finish, etc.
(3) Delivery time requirements.
